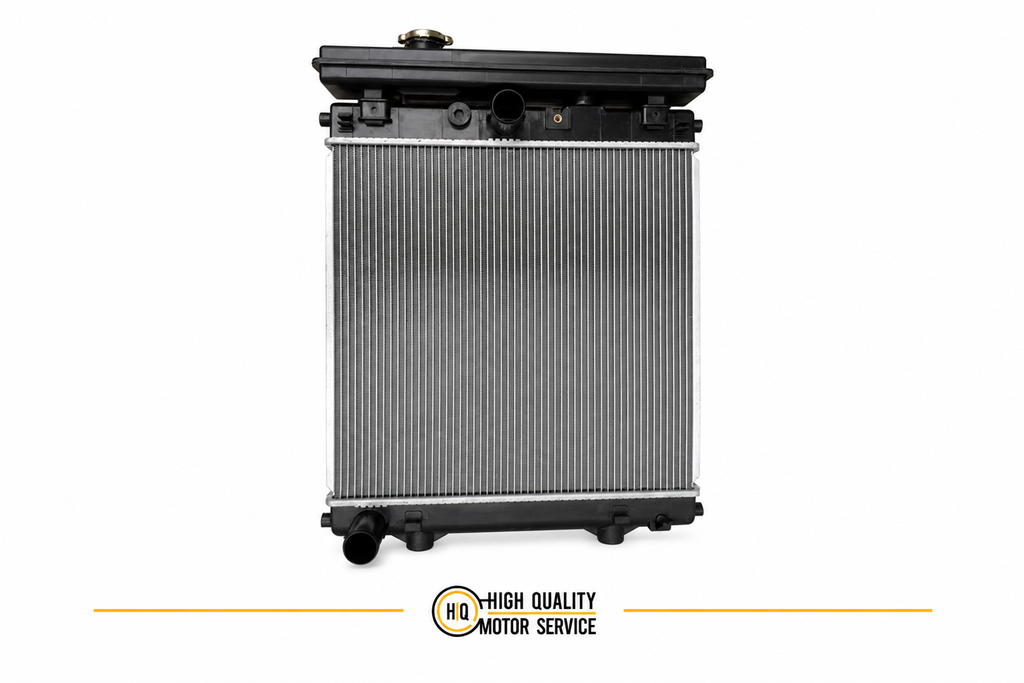

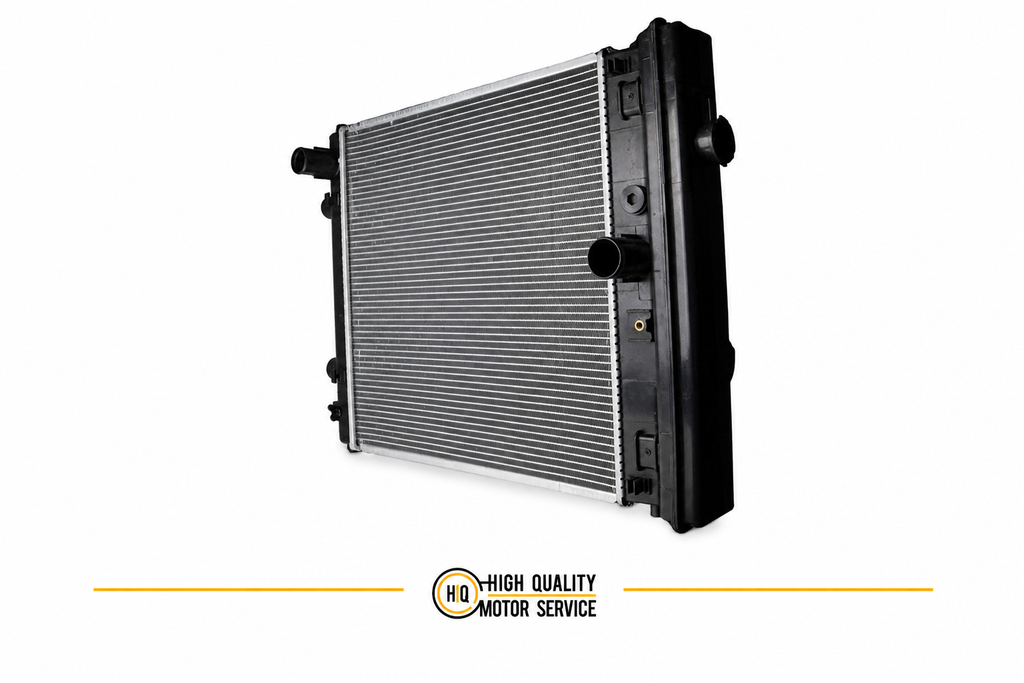

Perkins Engine Radiator 2485B280 | T430481

Part Specifications and Applications

Part Number: 2485B280

Cross References: T430481, 10000-00436

Part Type: Complete engine cooling radiator

Radiator Core Dimensions: 520 × 518 × 36 mm

Tank Dimensions: 544 × 53 mm

Material: Aluminum core with plastic side tanks

Package Contents: One complete engine radiator, as shown in the images.

Compatible Engines and Applications

Suitable for selected Perkins diesel-engine applications, including:

Perkins 404D-22, 404D-22T, 404F-22T

Perkins 1103A-33, 1103A-33T

Perkins 1103C-33, 1103C-33T, 1103D-33

Perkins 1104A-44, 1104C-44

Commonly used in compatible diesel generator sets and industrial equipment.

Function

The radiator transfers heat from the engine coolant to the surrounding air, helping maintain the correct engine operating temperature and prevent overheating.

Important Notice

Compatibility cannot be confirmed by engine model alone. Before ordering, verify the old radiator part number, core dimensions, coolant inlet and outlet positions, mounting points, engine build list and serial number.
