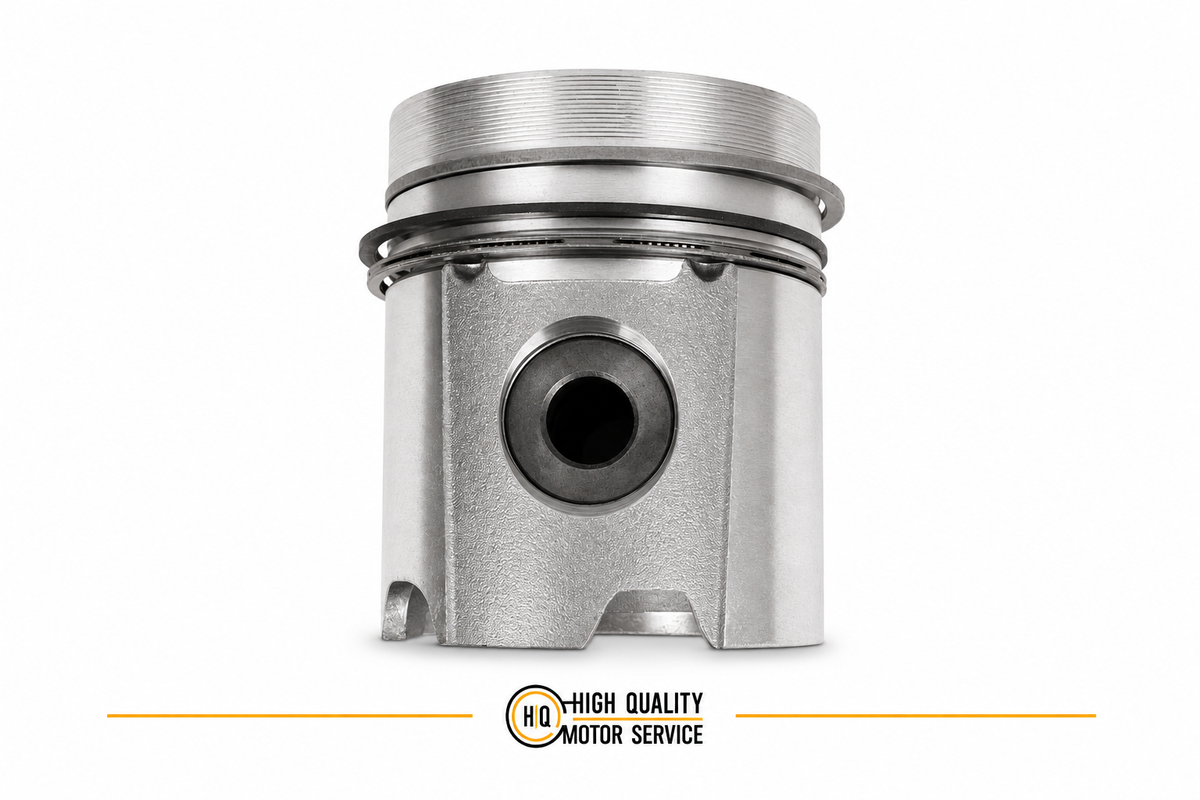

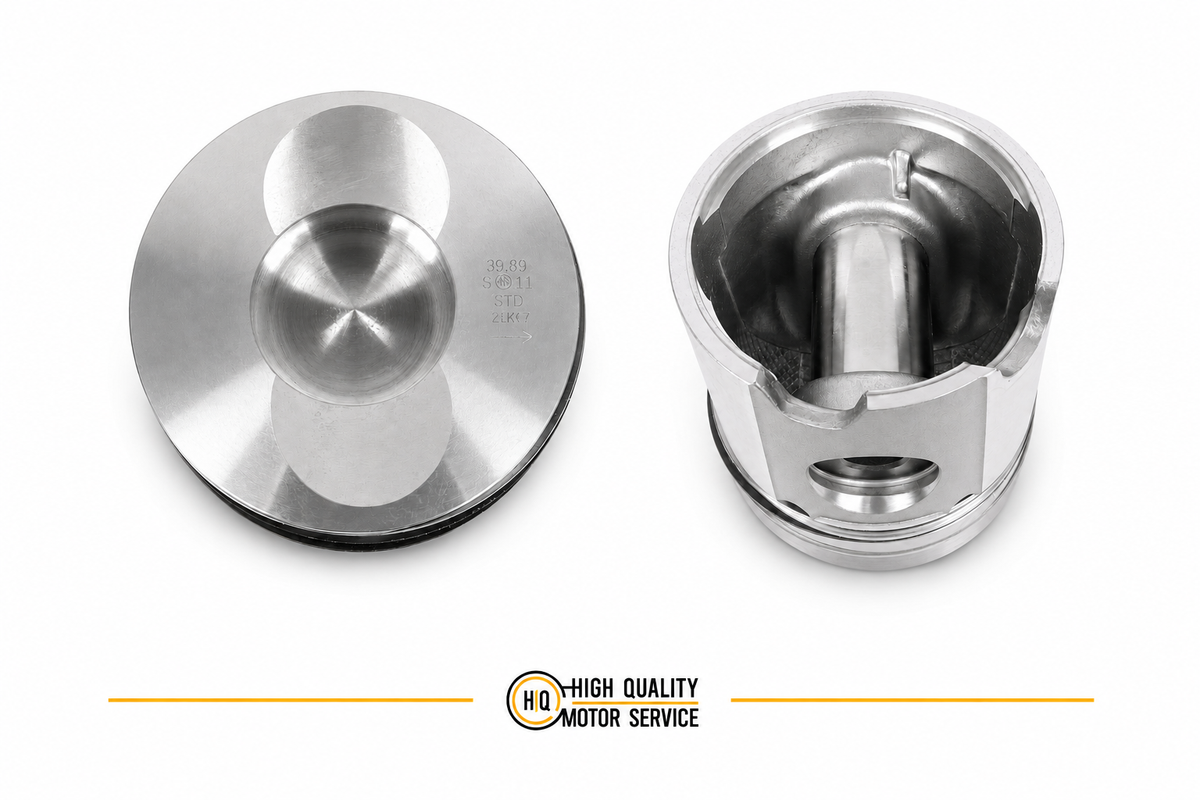

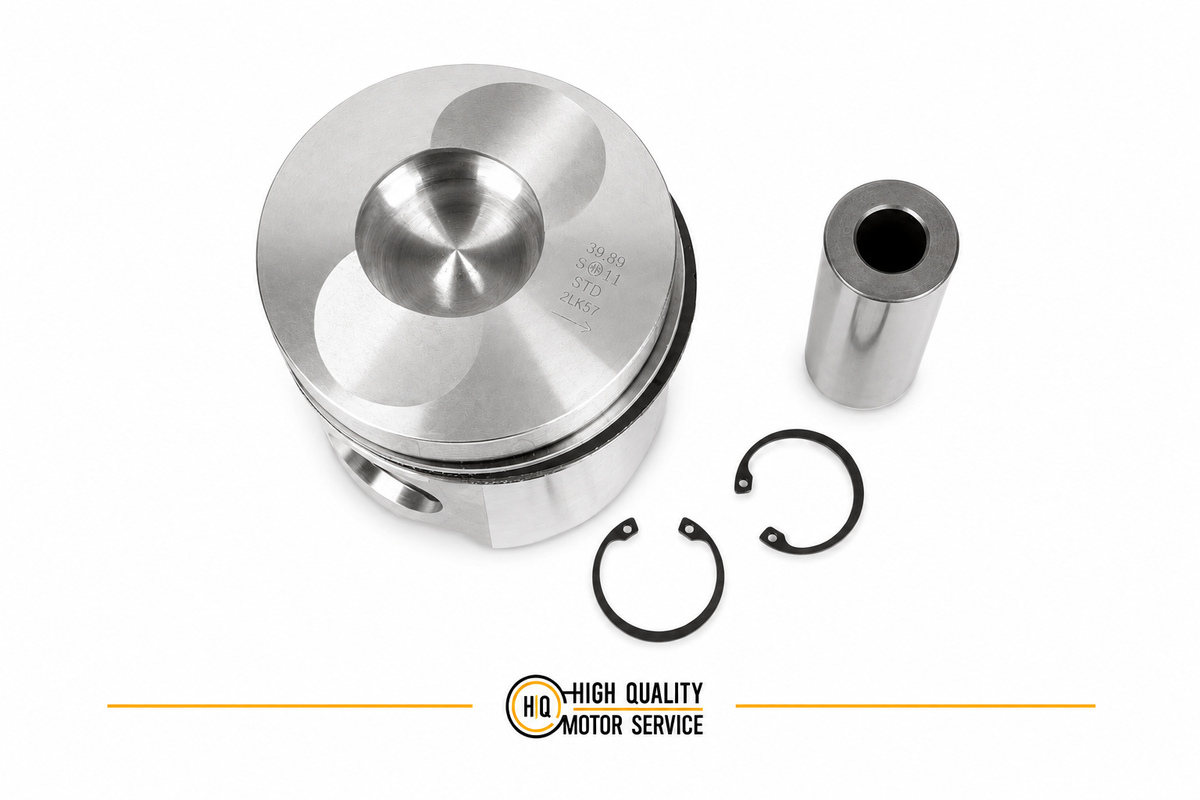

Deutz 912 Piston Kit 04232407 STD | 100mm

Part Specifications and Applications

Part Number: 04232407

Cross-Reference Numbers: 04232390, 94653600, 099PI00133000, 2390/00

Part Type: Standard-size engine piston kit

Piston Diameter: 100 mm

Piston Height: Approximately 123.6 mm

Piston Pin Diameter: 35 mm

Combustion Chamber Diameter: 45 mm

Number of Piston Rings: 3

Compatible Engines and Applications

Suitable for selected Deutz 912 Series air-cooled diesel engines, including:

Deutz F3L912, F4L912, F5L912 and F6L912

Commonly used in compatible generator sets, agricultural machinery, construction equipment and industrial applications.

Function

The piston transfers combustion pressure through the connecting rod to the crankshaft. The piston rings help maintain compression and control lubricating oil inside the cylinder.

Important Notice

This is a standard-size 100 mm piston. Before ordering, verify the old piston number, cylinder bore, piston-pin diameter, combustion-chamber shape and engine model.
