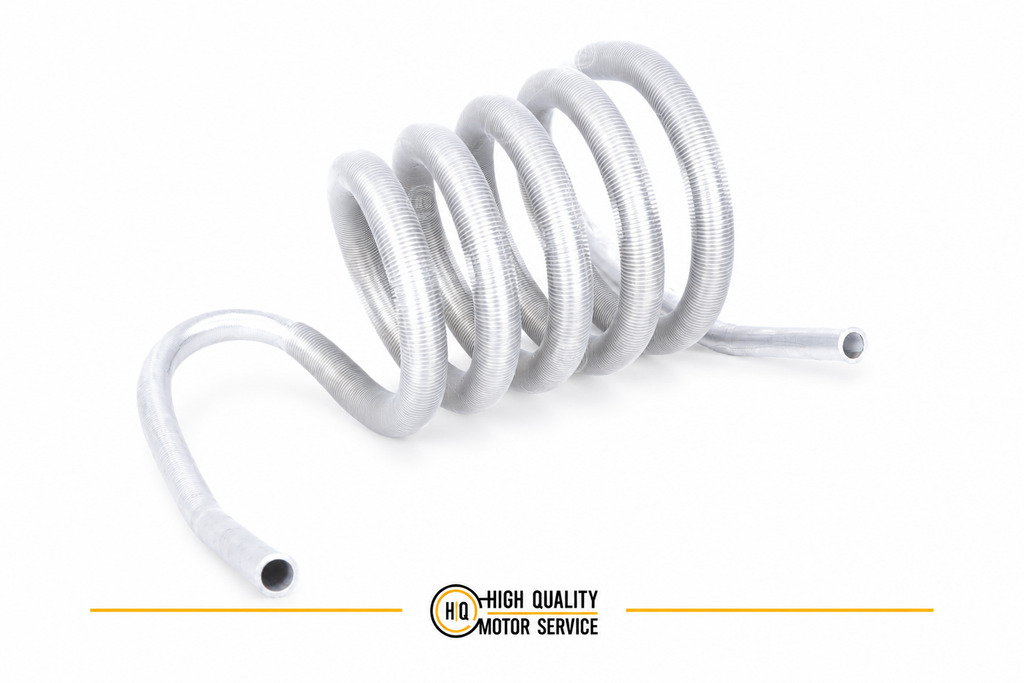

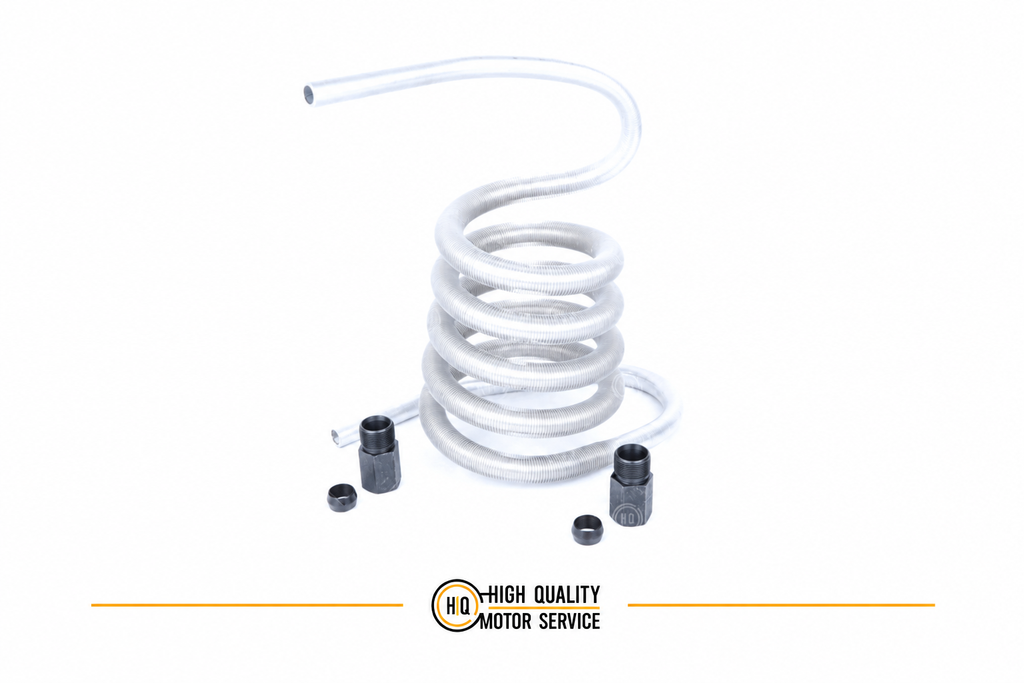

Deutz Oil Cooling Coil 04151409 | F3L912 F3L913 F3L914

Part Specifications and Applications

Part Number: 04151409

Cross-Reference Numbers: 03363004, 04150016

Part Type: Spiral engine oil cooling coil / oil cooler

Material: Metal

Engine Configuration: Selected 3-cylinder Deutz engines

Compatible Engines and Applications

Suitable for selected Deutz F3L912, F3L912W, F3L913, F3L913G and F3L914 engine applications.

Commonly used in compatible generator sets, agricultural machinery, construction equipment, tractors and industrial applications.

Function

The spiral cooling coil transfers heat from the circulating engine oil to the surrounding cooling airflow. This helps control oil temperature and supports effective engine lubrication.

Important Notice

Before ordering, verify part number 04151409, the coil shape and dimensions, pipe connections and engine model. Compatibility cannot be confirmed by engine series alone.
